Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range

    Buy cheap Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range from wholesalers

    Buy cheap Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range from wholesalers
    • Buy cheap Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range from wholesalers
    • Buy cheap Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range from wholesalers
    • Buy cheap Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range from wholesalers

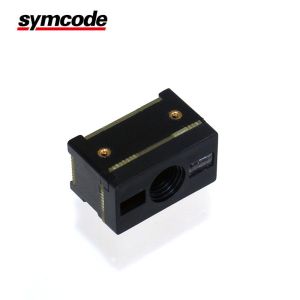

    Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range

    Ask Lasest Price
    Brand Name : symcode
    Model Number : MJ-2000
    Certification : CE FCC ROHS IP54
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 50,000pcs per month
    Delivery Time : Sample order:1-3 days / Bulk order:7-15days
    • Product Details
    • Company Profile

    Smallest Barcode Scan Engine / 2D Barcode Module With Wide Voltage Range

    Good Performance Smallest 2D Barcode

    Scanner Module for Tablet and PDA


    The module consists of laser engine and decoder. There are a 10 pin flat cable provided to users. You can control this module via the 10 pin flat cable. It supply 5.0V and 3.3 V power mode, also supporting single scanning and continuous scanning.


    The advantages of our MJ-1000 Scanner Module

    1. High Sensitive

    2. Wide voltage range

    3. Easy install

    4. Easy to integrate into various of OEM device

    5. Easy to read all standard 1D barcode

    6. Autosense for choice


    Shipment

    We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.


    Type2D image scanning module
    Sensor Resolution648x 488
    Barcode typesCodabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix
    Barcode accuracy>/=4mil
    Focal diatance to front of engine40~300mm
    Ambient Light0~100000LUX
    Print Contrast30%
    Scan AnglePitch angle: 28°
    Skew tolerance:21.5°
    Max Power Comsumption1.4W
    Voltage3.3V ± 5%
    Max Current135mA
    Operation Current58mA
    Standby Current2mA
    Operation Temperature(-20℃ to 60℃
    Storage Temperature(-40℃ to 80℃
    Humidity5% to 95%
    Dimensions:21mm 11mm 13mm
    Weight7g
